Hybrid SC Female to LC Male Simplex Metal Fiber Optic Conversion Adapters&connectors
Model:SX-SC/UPC-LC/UPC
Place of Origin:ShenZhen,China
Description
Hybrid adaptors are used for mating 2 different style connectors or assemblies. These adaptors have a female adaptor end united to the back end of a different male connector which can be connected to an additional adaptor or interface of the same type. This can change the assembly end without the need for additional cable, therefore reducing space. Our hybrid adaptors conform to international standards, are quality tested, and are available in singlemode and multimode and come in many different connector-type configurations.
Optical Adaptor are developed to couple and mate two identical or two different (hybrid) connector plugs. The housing of the Adaptors of the last generation has a reference key for the right position coupling and zirconia or phosphorus bronze split sleeve for high alignment.
CLX could supply standard types of Adaptors, such as SC-FC, SC-ST, FC-ST, SC-LC, FC-LC and ST-LC etc. Hybrid adaptor.
CLX Adaptors design, material and manufacturing process assure long life and high repeatability of optical performances even for different brand connectors mating.
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM-50/125 PC | MM-62.5/125 PC |
| Insertion Loss | ≤0.3dB | ≤0.3dB | ≤0.3dB | ≤0.3dB |
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB | ≥35 dB |
| Durability(500 Mating) | 0.2dB Max. | |||
| Operation Temp | -40~+85 | |||
| Storage Temp | -40~+85 |
|||

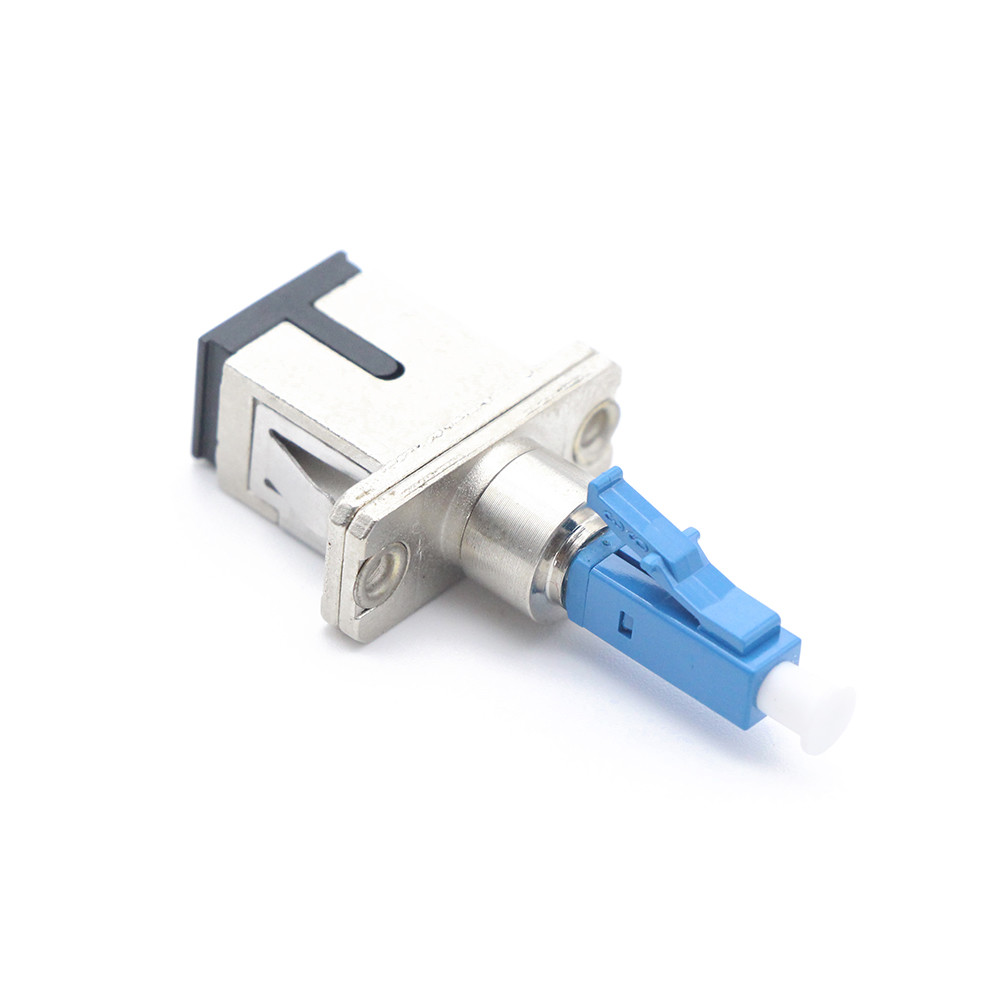

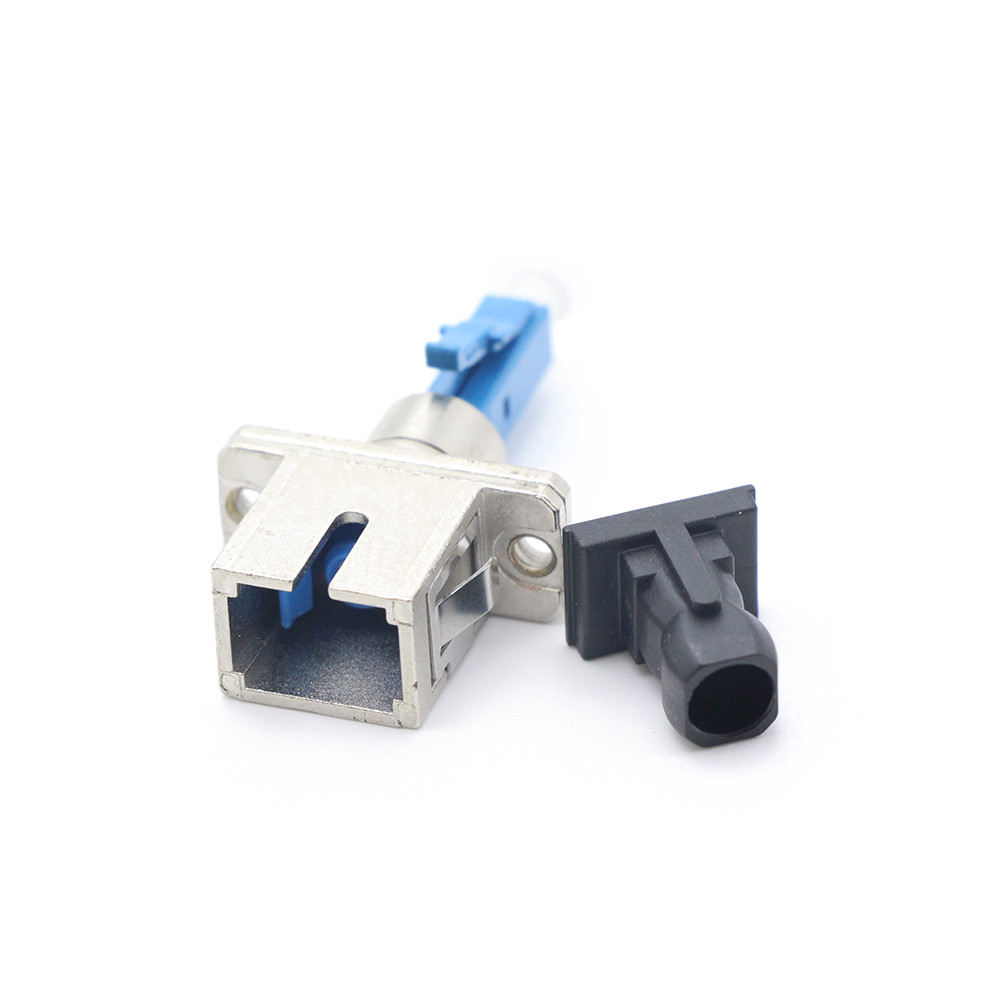

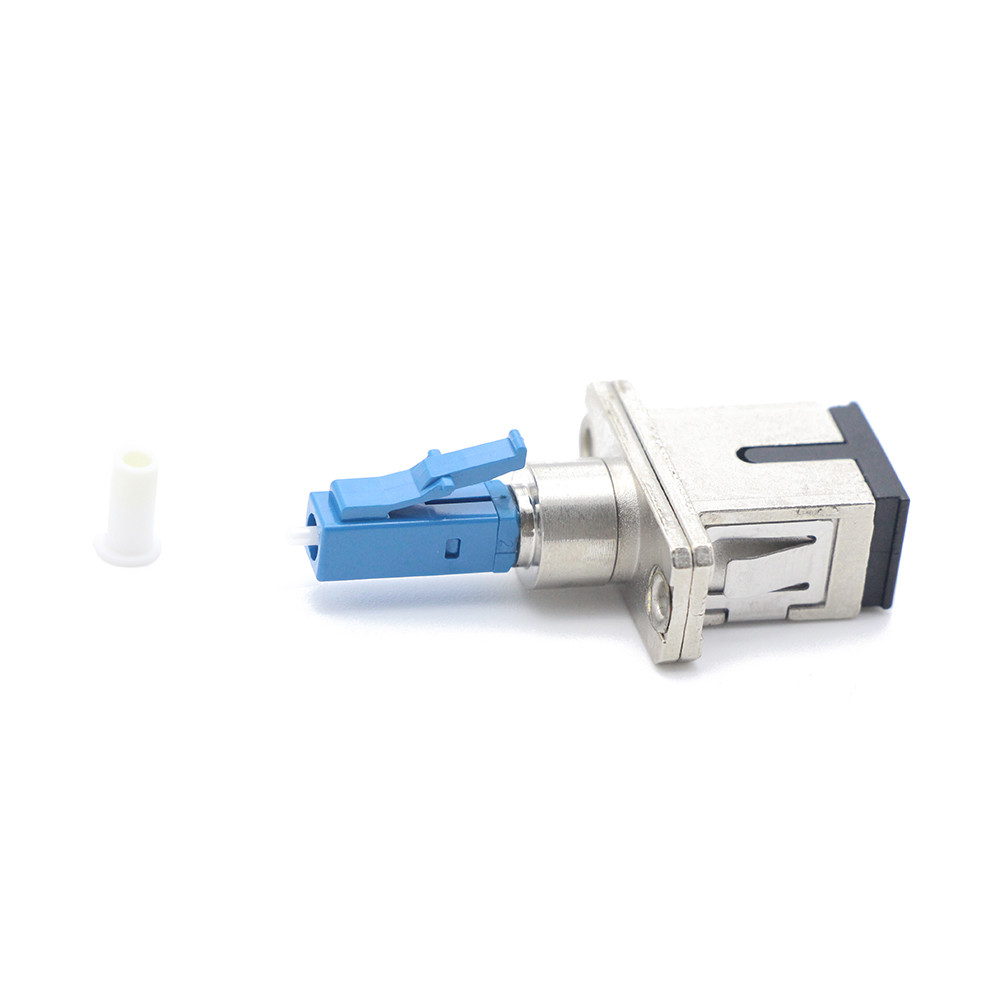

Detailed Images
Application
* Patch panels, ODF and other optical connections.
* Optical networks demarcation and monitoring point.
