Model:DX-LC/UPC-LC/UPC
Place of Origin:ShenZhen,China
Description

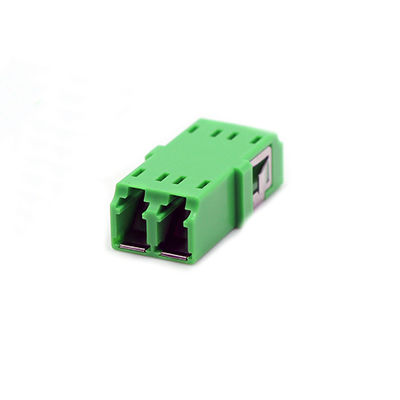

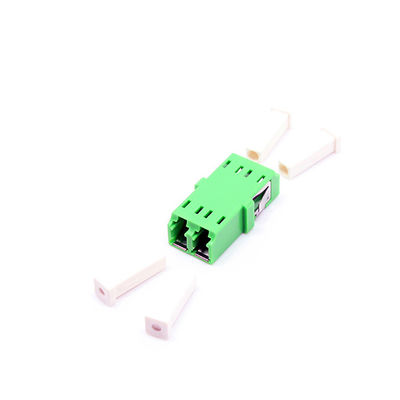

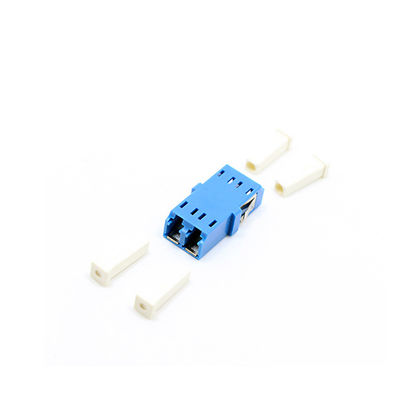

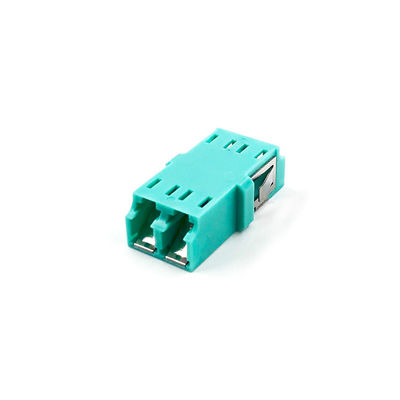

LC Duplex Adapter with internal shutter-ree flange is a one-piece design adapter. The shutter is 100% automatic and requires no physical handling of the shutter door. You can actuate this integrated, retractable shutter inside the adapter body by inserting the LC connector into the adapter. The shutter automatically opens as you insert the LC connector, and closes as you extract it. Due to the special design of the shutter, it will not touch the ferrule end face when you insert a connector, thus preventing end face damage. The internal shutter prevents eye exposure to lasers and provides protection from dust and other contaminants.
With increasingly high-powered active devices being used in today’s networking and telecommunication platforms, Eye safety and connector cleanliness are an absolute necessity. OMC’s LC adapter with Internal shutter has been designed to meet this growing need.
Products details
Features
TIA/EIA-604 FOCIS-10 compatible; exceeds TIA/EIA-568-B.3 requirements
Complies with IEC 61754-4, Flammability UL94 V-0 standard
Available in Flanged and Flangeless options
Precision connection with sleeve
Low insertion loss, High Return loss
Good interchangeability and reliability
Meet IEC and ROHS standards
High precision of mechanical dimensions Accuracy
Material
| Parts name | Material | Color |
| Housing body | PC | Blue, Green Customized |
| Sleeve | High precision Ceramic sleeve | White |
| Inside hook | PC | Blue, Green Customized |
| Metal Plate | Bronze bronze | - |
| Inner shutter | SUS304 | - |
| Dust Cover | PVC | Black |
Specifications
| Test item | (SM-9/125) UPC | (SM-9/125) APC | MM PC |
| Insertion Loss | ≤0.2dB(Standard Grade); ≤0.1dB(Premium Grade); | ||
| Return Loss | ≥50 dB | ≥60 dB | ≥35 dB |
| Durability (1000 Mating) | 0.1dB Max. | ||
| Withdrawal force(g/f) | 2.0N ~ 5.9N (200gf ~ 600gf) | ||
| Storage Temp(℃) | -40~+85 | ||
Environment and Mechanical
| Properties | Test condition | Conformance | Test result |
| Vibration | 10-55Hz, 1.5mm, 60min | IEC61300-2-1 | ≤0.2dB |
| Mating Durability | 1000 Mating, clean every 25 mating. | IEC61300-2-2 | ≤0.2dB |
| Impact | 1.5m, 8 drops | IEC61300-2-6 | ≤0.2dB |
| Strength of Coupling Mechanism | 40N, 10Min, L=22-28cm | IEC61300-2-12 | ≤0.2dB |
| Temperature Cycling | 40ºC to +75ºC, 40 cycles | IEC61300-2-22 | ≤0.2dB |
| Temperature humidity cycling | 40ºC, 95%, 96Hr | IEC61300-2-21 | ≤0.2dB |
| Operating Temperature | -40ºC to +85ºC | ≤0.2dB | |
| Storage Temperature | -40ºC to +85ºC |
≤0.2dB
|
Application
Patch panels, ODF and other optical connections.
Optical networks demarcation and monitoring point
Hight light
Dust and Laser Protection Design
The new one-piece housing design prevents breaking of the adapter due to the absence of ultrasonic weld type construction.
