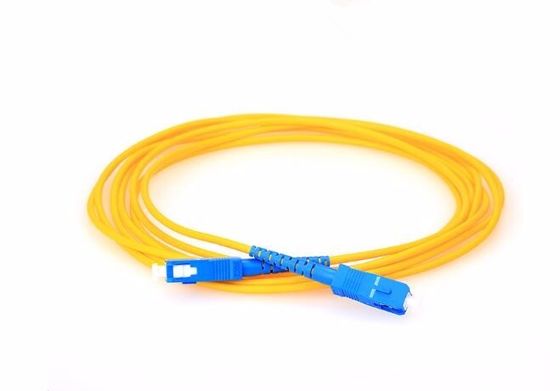

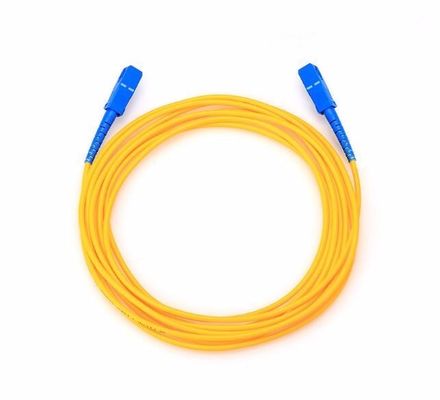

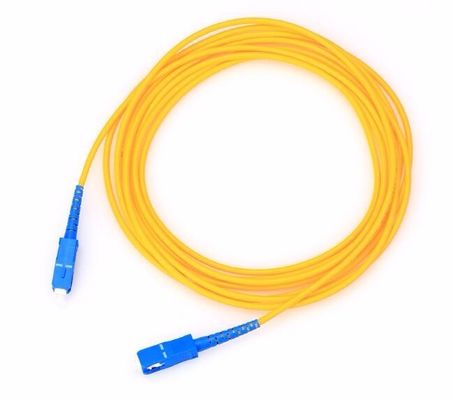

Model Number:SC/UPC-SC/UPC-SM-SX Patch Cable
Place of Origin:ShenZhen,China
Description
A patch cable, patch cord or patch lead is an electrical or optical cable used to connect ("patch in") one electronic or optical device to another for signal routing. Devices of different types (e.g., a switch connected to a computer, or a switch to a router) are connected with patch cords.
Patch cords are usually produced in many different colors so as to be easily distinguishable with each other.
Applications:
* Telecommunication networks, Gigabit Ethernet
* CATV, Video, Multimedia
* Active device termination, Premise installations
* Industrial, Military
Ordering options:
*Patch cord or pigtail
*Fiber type:9/125um(SM),50/125um(MM),62.5/125um(MM)
*Endface type: PC, APC,UPC
*Cable number:duplex,simplex
*Cable diameter:0.9mm,2.0mm,3.0mm......
*Cable length: customized
*Cable material: PVC,LSZH,OFNR,OFNP
Specification
| Mode | Singlemode | ||
| Connection Style | Simplex | ||

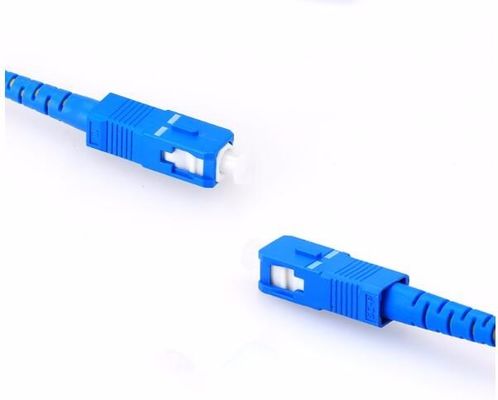

| Connectors | SC UPC to SC UPC | ||
| Fiber | 9/125um | ||
| Polish Type | UPC | ||
| Typical Insertion Loss | ≤ 0.20 dB | ||
| Maximum Insertion Loss | ≤ 0.30 dB | ||
| Fiber Numbers | Fiber | 1 | |
| Colo Fiber | Color | Blue 2,5 B 5/6 | |
| class | Fiber | A/B (BLI A/B) G657A2 | |
| Operating Temperature | ºC | -20 +65 | |
| Installation temperature | ºC | 0 +40 | |
| Storage Temperature | ºC | -20 +65 | |
| Eccentricity of the optical element | % | ≤10 | |
| Outer Diameter of Optical Element | mm | 0,90 ±0,15 | |
| Nominal cord diameter | mm | 2,9 ±1 | |
| External coating | - | Thermoplastic flame retardant material | |
| Exterior coating color | Color | White with minimum brightness 8,5 maximum 9,4 - Minimal saturation - Minimal light 10B maximum 5PB |
|
| Insertion loss | dB | Typical ≤0.15dB Maximum ≤0.3dB | |
| Return loss | dB | 50~ 60dB | |
