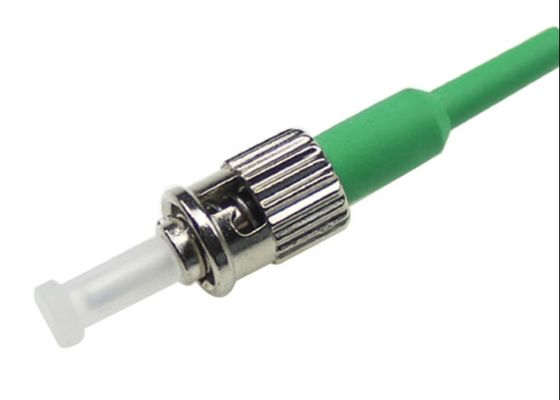

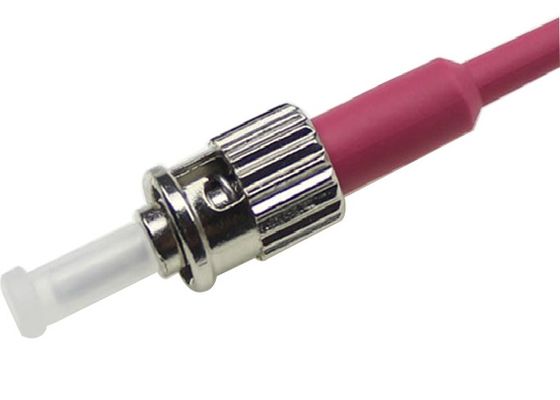

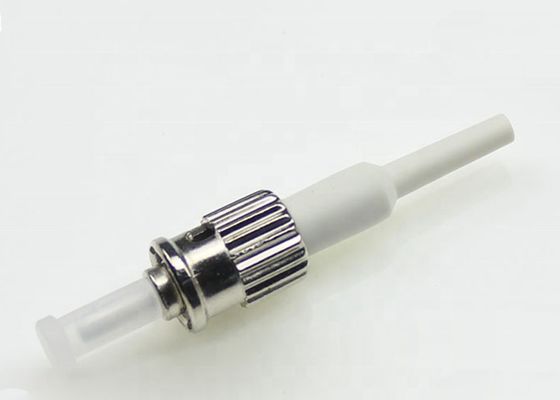

ST UPC polishing optical connector White Multi Mode Simplex 0.9mm Boot Fiber Optic Connector Ceramic Ferrule
Model:ST-UPC-SX-0.9mm
Place of Origin:ShenZhen,China
Description
Optical fiber connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass.
They are used to join optical fibers where a connect/disconnect capability is required, are used in telephone exchanges, for customer premises wiring, and in outside plant applications to connect equipment and cables, or to cross-connect cables.
Each fiber optic connector is functionally tested before shipping.
Key Feature
Low insertion loss and back reflection loss;
Ferrule end surface preformed;
Precision anti-rotation key and corrosion resistant body;
UL-rated plastic housing;
Boots in a variety of colors;
Telcordia style boots;
Free-floating ceramic ferrule.
Specifications
| Parameter |
Unit |
ST | |||
| SM | MM | ||||
| PC | UPC | APC | PC | ||
| Insertion Loss(typical) | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Return Loss | dB | ≥45 | ≥50 | ≥60 |
≥30
|
| Exchangeability | dB | ≤0.2 | |||
| Repeatability | dB | ≤0.2 | |||
| Durability | Time | >1000 | |||
| Operating Temperature | °c | -40~75 | |||
| Storage Temperature | °c | -40~85 | |||
Order Information
ST Series connecter
|
Connector Type |
Ferrule | Crimp Eyelet | Boot Dia(mm) | Boot Colour | Fiber Count |
|
ST/UPC/SM ST/UPC/MM ST/APC/SM ST/APC/SM
|
Single Mode Multi Mode Conical Step |
2.0mm 3.0mm No eyelet |
0.9mm 2.0mm 3.0mm |
Red Black Blue Green Yellow Magenta Beige White violet |
DX-Duplex SX-Simplex
|
Application
-WANs,LANs,CATV
-Testing equipment
-Communication system
-Telecommunication networks
