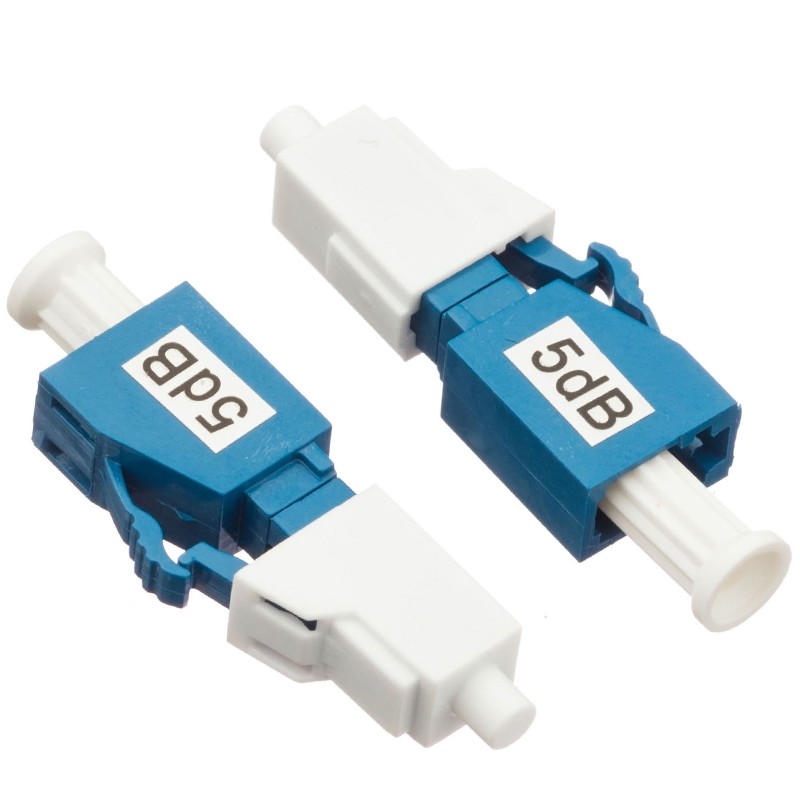

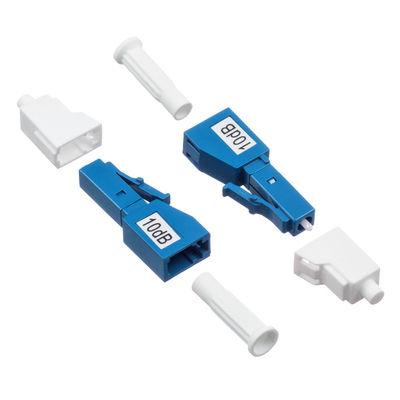

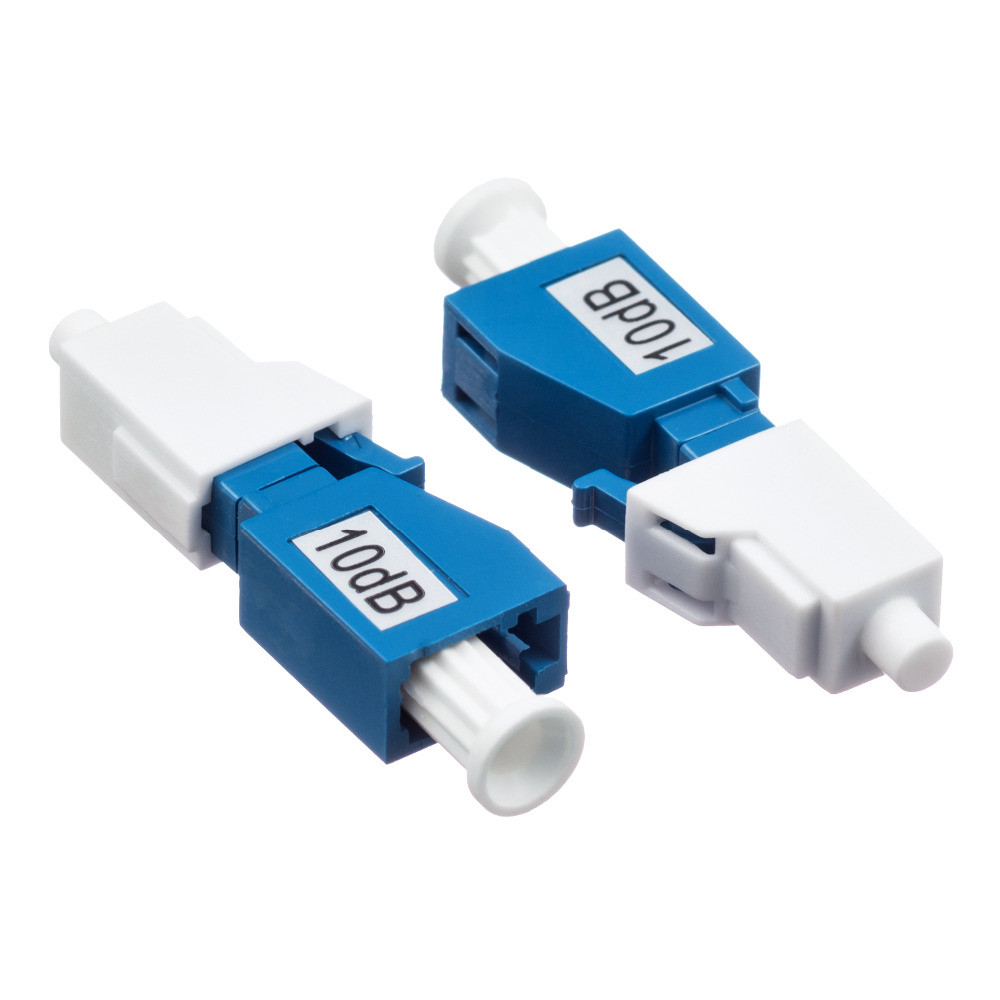

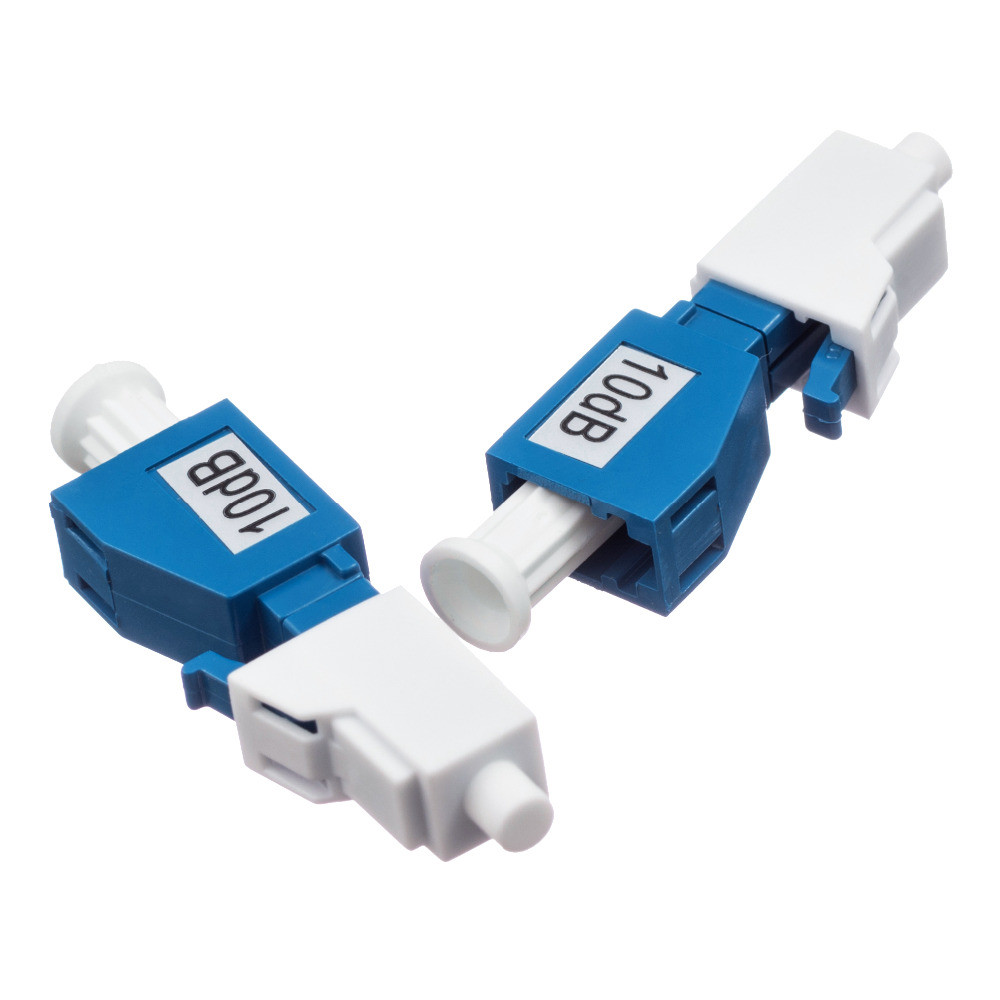

Model:LC/UPC Optical Attenuator
Place of Origin:Guangdong,China
Description
Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.
Specifications
| Product type | Coupler Attenuator Male to Female |
| Operation wavelength | SM: 1200 to 1600nm or 1310/1550nm |
| MM: 850nm, 1300nm | |
| Return Loss | ≥ 50 db (PC) |
| ≥ 55 db (UPC) | |
| ≥ 65 db (APC) | |
| Attenuation Accuracy | +/-0.5 db for 1 to 5db attenuation |
| +/-10% for 6 to 30db attenuation | |
| Polarization Dependent loss | ≤ 0.2db |
| Mechanical endurance | >1000 |
| Maximum optical Input power | 200MW |
| Operating Temp Range | -40 to + 80degree |
Ordering Information: AT-A-B-C-D-E-F-G
| AT- | A | B | C | D | E | F | G |
| Attenuator | LP=LC/UPC |
M=Male
F=Female |
LP=LC/UPC |
M=Male
F=Female |
SM= SingleMode
MM= Multi mode |
1dB ...... 9dB 10dB 15dB 20dB 25dB 30dB |
31=1310nm
55=1550nm
85=850nm
30=1300nm |
| LA=LC/APC | LA=LC/APC | ||||||
| FP=FC/UPC | FP=FC/UPC | ||||||
| FA=FC/APC | FA=FC/APC | ||||||
| SP=SC/UPC | SP=SC/UPC | ||||||
| SA=SC/APC | SA=SC/APC | ||||||
| ST=ST/UPC | ST=ST/UPC | ||||||
| MU=MU/UPC | MU=MU/UPC |
For Example about full attenuator description : SC/UPC Single mode Female to male 3dB 1310/1550nm Build Out Fiber Optical Attenuator
Packing:
One piece per PE bag with stick label (we could add customer's logo in the label.)
