SMA 905 fiber optic connector metal ferrule /adapter 200um 300um 400um 600um patch cord bare fibra sma905
Model:SMA 905
Place of Origin:ShenZhen,China
sma connector Description

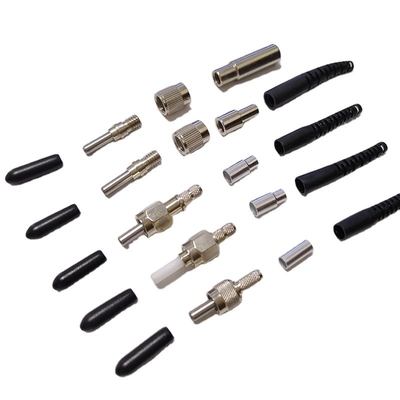

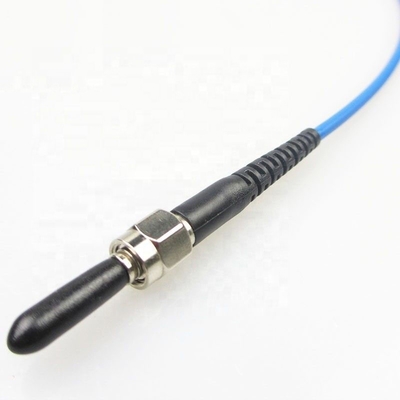

The high precision SMA905 fiber optic connector is used, the core of the end surface is finely ground, the concentricity is controlled below 1.0, the inner diameter dimension tolerance is 0.5um, and the outer diameter tolerance size is 5um. With a high precision SMA adapter, accurate docking allows for the lowest wear control. General docking loss of about 0.2db. Core material selection of high-quality stainless steel, durable, and according to the actual needs of customers, any custom core hole diameter, to match the use of different core diameter fiber. The outer frame of the SMA fiber optic connector is divided into round and hexagonal, so the customer can choose the appropriate frame according to their actual needs.
sma905 fiber optic connector Feature
1.Good light through rate
2.Excellent anti fatigue
3.Large core diameter optical energy
4.Tensile strength
sma905 fiber connector Application
1.Optical measurement applications
2.Medical optical detection equipment
3.Detection of food safety
4.Factory automation
5.Cars, planes and military application
SMA905 Ceramic Ferrule Specifications
| Parameter | Specification |
| Core Diameter(μm) | 50 105 200 300 400 600 800 1000 |
| CladdingDiameter(um) | 125 125 220 330 440 660 840 1050 |
| Core Material | Pure Quartz |
| Insertion Loss SM (typical) | 0.50 dB |
| Insertion Loss MM (typical) | 0.20 dB |
| Material - Ferrule | Stainless Steel / Zirconia |
| Fiber Types | Singlemode / Multimode |
| Hole Sizes | 125 micron to 1050 micron |
| Mating Durability | > 1000 Cycles |
| MOQ | 10 pcs |
Our Company
About shipping:We usually use DHL, FEDEX, UPS, EMS, TNT or Sea, these are the world's largest shipping companies, you can provide us with your courier account, we will help you choose the cheapest and the cheapest according to the quantity
FAQ
1. who are we?
We are based in Guangdong, China, start from 2010,sell to Domestic Market(50.00%),North America(10.00%),Oceania(10.00%),Southeast Asia(10.00%),South Asia(5.00%),Western Europe(5.00%),Southern Europe(5.00%),Eastern Europe(5.00%). There are total about 11-50 people in the region our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Fiber Optic Polishing Machine; Fiber Optic Polishing Fixture; Fiber Optic Epoxy Curing Oven; Fiber Optic Crimping Machine; Fiber Optic End Face Detector and other equipment
4. why should you buy from us not from other suppliers?
We have eleven years of R & D, design experience and technical reserves. Not only must we sell good products and provide good after-sales service, we also provide customers with free technical support (technical documents or videos)
5. what services can we provide?
Accepted Delivery Terms: FOB,EXW,FAS;
Accepted Payment Currency:USD,CAD;
Accepted Payment Type: T/T,MoneyGram,Western Union;
Language Spoken:English,Chinese
