LC SC FC ST UPC APC Zirconia Ceramic 0.5um 1.0um Concentricity 1.25mm 2.5mm Optical Fiber Optic Zirconia Ferrule
Ferrule SC UPC Product Description:
Compliance with IEC ,YD-T826/1996, NTT, YD/T826, YD/T895 and YD/T896 standard
Low insertion loss, high return attenuation, high stability
Repeated several mating characteristics, interchangeability
Standard metal parts
Bayonet connection, high-density docking
Ceramic ferrule, PC, UPC and APC polishing
Provide ordinary PVC or LSZH fiber optic cable
Fiber Optic Ferrule Application:
Telecommunications networks
Test equipment
Fiber optic communication systems
Optical fiber access networks
Optical fiber CATV
Fiber optic LAN

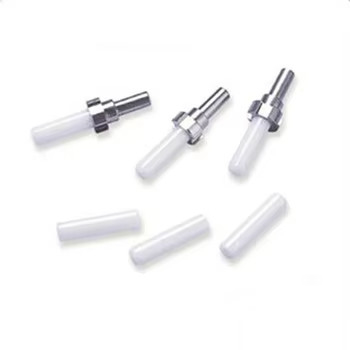

Fiber optic ceramic ferrule:
Sc Fc Lc Zirconia Ceramic Fiber Optic Ferrule Specifications:
| Parameter | Unit | FC,SC,LC | ST,MU | MT-RJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥50 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating Wavelength | nm | 1310,1550 | 1310,1550 | 1310,1550 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | ℃ | -40～+75 | -40～+75 | -40～+75 | |||||||
| Storage temperature | ℃ | -40～+85 | -45～+85 | -45～+85 | |||||||
| Cable diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 |
|||||||
Recommend products:
Simplex SC UPC Connector
SC Optical Fiber Connector Feature:
● Corrosion resistance and durability
● Low insertion loss
● Various types and colors of tail covers
● Conforms to IEC 874-10 and ECCBFOC/2.5 and AT&T-ST II standards.
● Compliance with IEC-61754
● Types available: assembled sets of connectors or unassembled pieces of connectors.
Fiber Optic Connector Application:
● Anti-corrosion
● Cable TV network
● Durable
● In active device equipment
● Low insertion loss
● Optical fiber communication system.
● A variety of tail sleeve types and colors
● Optical fiber communication system.
● SC can provide 45 ° or 90 ° bend.
● Telecommunication network
● Local Area Networks (LANs)
● Wide Area Networks (WANs)
● System debugging
