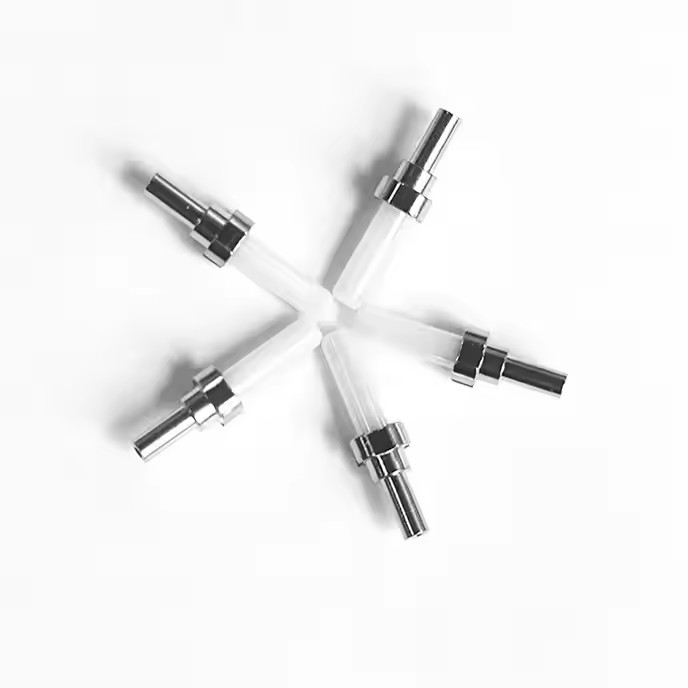

Precision Machining Zirconia Ceramic Ferrule for Fiber Optic Cable Connection
Model: APC,UPC,PC
Place of Origin:ShenZhen,China
Zirconia Ceramic Ferrule Product Description
Brief Introduction
Ferrule is generally treated as the core part of the connector. Zirconia ceramic ferrules are recognized to have the best durability and reliability among various kinds of material. Ferrule is the best connection way for a fiber communication at present.
Materail
Ferrule: Zirconia Ceramic
Flange: Ni-Plated Cu
Fiber Optic Zirconia Ceramic Ferrule Feature
Optimized for SC, FC, ST connector
High quality and performance
High precision for concentricity, I.D., O.D.
Low insertion loss
High reliability by using zirconia
Compliant with RoHS and Telcodia-GR-326-CORE
SC ferrule SM & MM available
Ceramic Ferrule Application
1) SC, FC, MU, LC and other fiber optical connector;
2) Used in the active and passive components

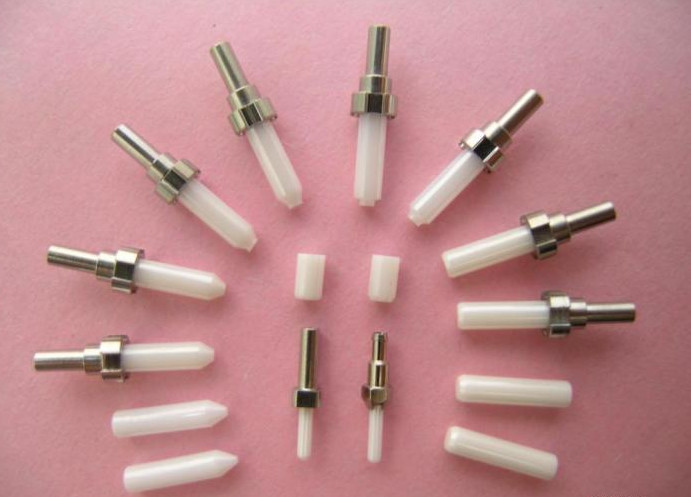

Zirconia Ceramic Ferrules ferrules For Fiber Optic Assembly sc Connector Ferrule
Specifications:
| Parameter | Unit | FC,LC,SC | ST,MU | MTRJ,MPO | |||||||
| SM | MM | SM | MM | SM | MM | ||||||
| PC | UPC | APC | PC | PC | UPC | PC | PC | UPC | PC | ||
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | |||||||
| Exchangeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | |||||||
| Operating temperature | °C | -40~+75 | -40~+75 | -40~+75 | |||||||
| Storage temperature | °C | -45~+85 | -45~+85 | -45~+85 | |||||||
| Cable diameter | mm | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | Φ3.0,Φ2.0,Φ0.9 | |||||||
Recommend products:
Simplex SC UPC Connector
SC Optical Fiber Connector Feature:
● Corrosion resistance and durability
● Low insertion loss
● Various types and colors of tail covers
● Conforms to IEC 874-10 and ECCBFOC/2.5 and AT&T-ST II standards.
● Compliance with IEC-61754
● Types available: assembled sets of connectors or unassembled pieces of connectors.
Fiber Optic Connector Application:
● Anti-corrosion
● Cable TV network
● Durable
● In active device equipment
● Low insertion loss
● Optical fiber communication system.
● A variety of tail sleeve types and colors
● Optical fiber communication system.
● SC can provide 45 ° or 90 ° bend.
● Telecommunication network
● Local Area Networks (LANs)
● Wide Area Networks (WANs)
● System debugging
